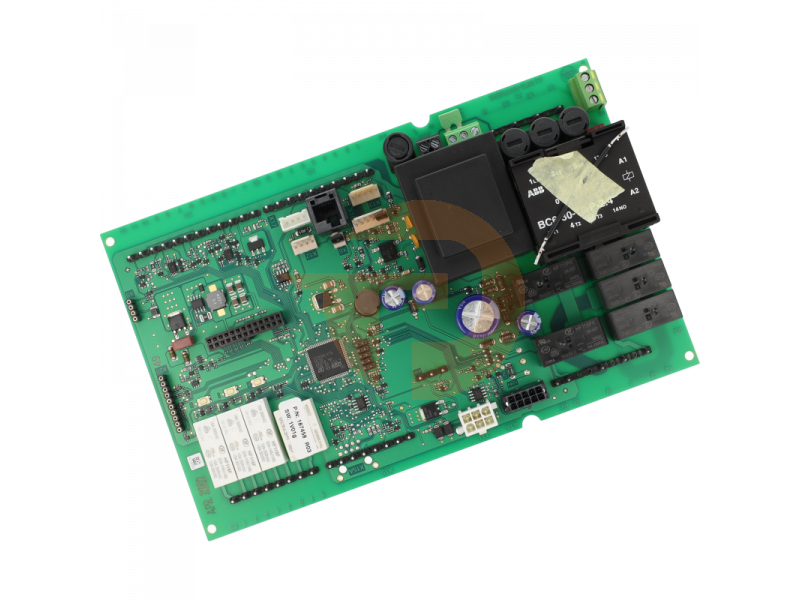

CS320 400V/3PH PCB (printed circuit board)

264,95
Add to Compare
Availability
In stock
  • Contact us for large amounts (100+)

  • Unlimited online support

Control board MFZ CS320 400V / 3Ph

Replacement PCB for MFZ CS300 & 310 controllers
Suitable for both mechanical (MEC) and electronic limit switches (AWG)
CS300 400V/3PH PCB (circuit board) &
CS300 230V/1PH PCB (circuit board)
CS310 400V/3PH PCB (circuit board) &
CS310 230V/1PH PCB (circuit board)

This article is also known as:

Marantec CS320 400V / 3Ph
MFZOvitor 185233
PCB CS320
Grundplatin CS320

Replacement for a CS300?

Do you have an older CS300-FU controller with an FU (Frequency controller) in the controlbox or in the motor, and you want to replace it with a CS320 controller, please pay attention! The old frequency inverter cannot work together with the new CS320 controller. To do this you must use CS320 Controller FU-E 0.75 in housing, keys+display and the cable Wire harness MFZ for STA FU-E 0.75 length 7-meter

General

Brand MFZ
Frequency Converter or Motor Relay? Motor relay
Operating voltage 3x400 Vac + N + PE(3 phase + Neutral + Protective Earth)
Motor voltage/ motor output 3x 400 Vac (3 phase)
Mains frequency 50 Hz
Control voltage 24 V
IP protection class n.a.
Housing n.a.
Dimensions (WxHxD) 225 x 140 x 55 mm
Fuse in mains 10A
Plug on power cord n.a.
Control panel on control box? No
Display in control box? No
Operating temperature -10 ... +46 °C
