General
| Compatible model control | Marantec CS320 FU (0,75) |
|---|---|
| Compatible drive model | Marantec MTZ-FU 20, Marantec MTZ-FU 30, Marantec MTZ-FU 50, Marantec STA 1-x-x x FU-I |
| EAN-code (13) | 4062434016541 |
| Brand | Marantec |

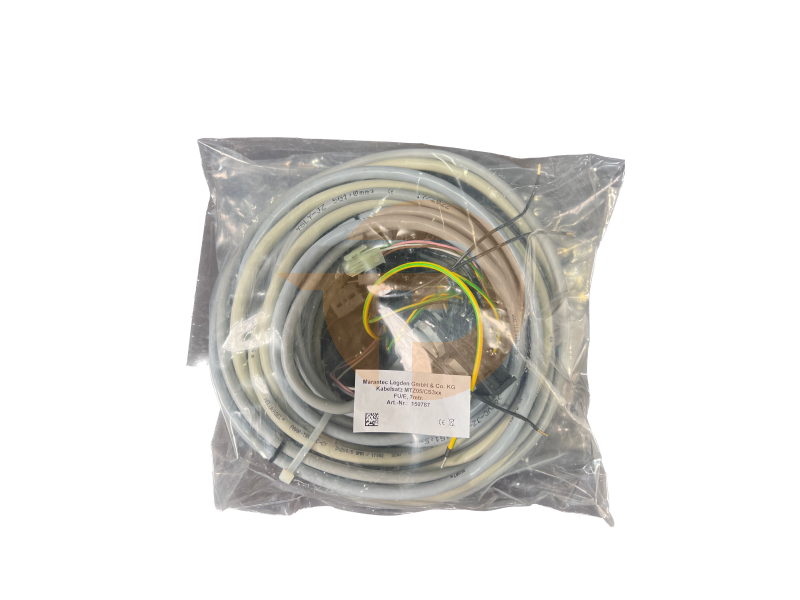

Wiring harness MFZ for STA FU-E 0,75 length 7 meters
Cable harness MFZ for STA/CS320 FU-E 0.75Kw 7-meter.
Cable properties:
Size of the limit switch housing
G1
Control housing design
CS (with insert threaded bushings)
Limit switches
AWG (Absolutwertgeber) Encoder
Brake control
Yes
Control model
CS320 FU-E
Maximum load
16 A
Length
7 meters
This part is suitable for the drives:
- STA
- STAW
This item is also known as:
Cable set STA/CS FU-E
Cable harness STA - CS310 FU-E
Motor cable STA - CS320 FU-E
Delivery includes the following parts:
Cable 7 meters
1x system plug (motor)
4x system plug (control)
Cover cap mechanical limit switches (motor)
Wire (control)
Technical data
Art.Nr.
150787
Brand
Marantec/MFZ
Type
G1-CS-AWG-BR-CS320FUE-16A-7.0
Compatible for driver
