General
| Max weight of the door | 120 Kg |
|---|---|
| Max door width | 5000 mm |
| Power | 700 N (70 daN) |
| Speed (max.) | 160 mm/sec |
| Class (number of parking spaces) | No index |
| IP protection class | IP 20 |
| Absorbed power at rest | 1.0 W |
| Recorded (max.) | 200W |
| Operating voltage | 230 Vac |
| Operating temperature | -20 ... +60 °C |
| Max. humidity | 93%, non condensing |
| Connection indicator lamp | Yes |
| Connection traffic light | No |
| Connection photocell | Yes |
| Part opening connection | No |
| Open the connection | No |
| Connection open / stop / close | Yes |
| Close the connection | No |
| Automatic closing (time) | Yes |
| Automatic closing (after passing photocell) | No |
| Safety list NC | No |
| Connection of the safety list optically | No |
| Connection safety list 8k2 | No |
| Power supply for accessories | Yes |
| Self-blocking | Yes |
| Limit switches | No |
| Programming tools available | No |
| Soft start and / or stop | Yes |
| Lighting | Yes |
| Integrated receiver | Yes |
| Number of channels | 1 |
| Integrated antenna | Yes |
| Homelink | No |
| Memory for number of transmitters | 100 |
| Modulation | FM |
| Antenna connection | No |
| Rolling code? | Yes |
| Homelink compatibel? | No |

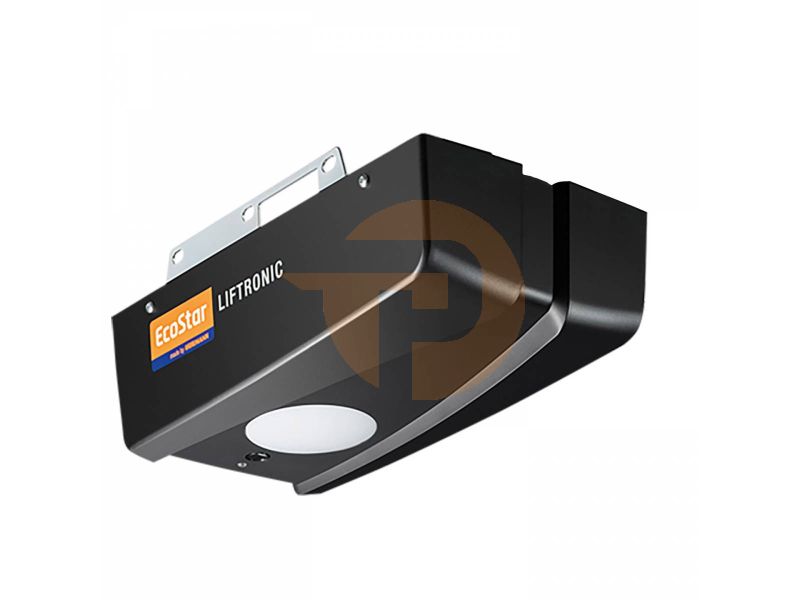

| Compatible drive model | Hörmann Ecostar 700-II |
| Radio Frequency | 433MHz |
| Radio code | Hormann 433 BiSecur |
| Brand | Hörmann |
