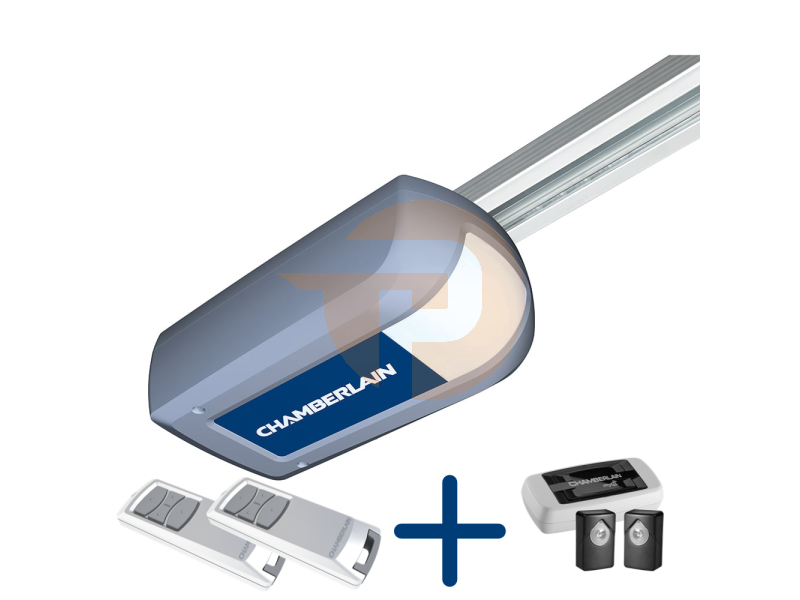

Garagedoor motor Chamberlain Comfort ML810EV-SMART

Name: Garagedoor motor Chamberlain Comfort ML810EV-SMART
SKU: ML810EV-SMART
Price: 309.95 EUR

Skip to the end of the images gallery

Skip to the beginning of the images gallery

309,95

Add to Compare

Availability

In stock

Complete set: Motor, Rail & 2 Transmitters.

Check worldwide whether your door is open or closed with the App!

Including the necessary photocell protection.

Unlimited online support

Environmentally Friendly Garage Door Operator Chamberlain Premium ML810EV-SMART

The garage door operator Chamberlain Premium ML8100EV has a low standby consumption of 0.8W, which is good for your wallet and the environment. Easy to install and INCLUDING the MyQ smartphone solution.

This set includes everything you need for smartphone operation!

Standard delivery:

Assembly instructions

Drive Comfort ML800EV

Mounting kit for installation

2x TX4REV-F 4-channel handheld transmitter

Guide rails 3 parts with toothed belt

MyQ Smartphone Kit (SmartPhone solution)

Additional options

Connection to ceiling control: Push button (push button inside)

Connection to ceiling control: Keypad

Emergency release: 1REV

Technical specifications

Max door width	5000 mm
Max door height	2250 mm
Class (number of parking spaces)	No index
Installation length (minimum)	3200 mm
Operating temperature	-30 ... +65 °C
Operating voltage	230 Vac
Absorbed power at rest	0.8 W
Recorded (max.)	80 W
Connection indicator lamp	Yes
Connection traffic light	No
Connection photocell	Yes
Part opening connection	Yes
Open the connection	Yes
Connection open / stop / close	Yes
Close the connection	Yes
Automatic closing (time)	Yes
Automatic closing (after passing photocell)	Yes
Safety list NC	No
Connection of the safety list optically	No
Connection safety list 8k2	No
Power supply for accessories	No
Self-blocking	No
Limit switches	No
Programming tools available	No
Soft start and / or stop	Yes
Speed (max.)	160 mm/sec
Lighting	Yes
Power	800 N (80 daN)
Integrated receiver	Yes
Integrated antenna	No
Homelink	No
Memory for number of transmitters	180
Modulation	FM
Antenna connection	No
Rolling code?	Yes
Homelink compatibel?	No
Radio Frequency	433MHz, 868MHz
Radio code	Chamberlain/Liftmaster EVO-code (Security+2.0)
Brand	Chamberlain
