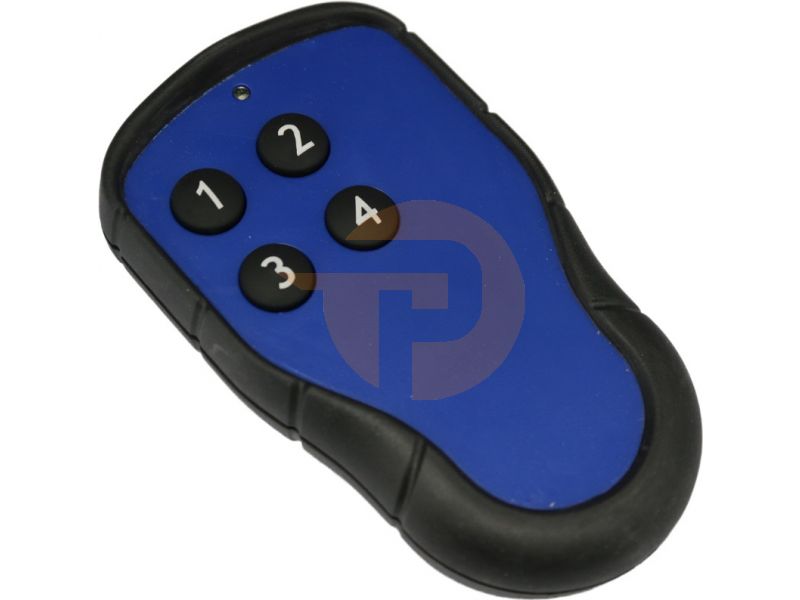

4 channel remote control: T60TX-04STM
Self-adjustable code (DIP-10)
Protection: IP65
Technical specifications:
4 push buttons
4 channels
Reach is approx. 150 meters in open field
Frequency 869 MHz FM modulated
16 million possible codes
3x AAA (1,5V)
Dimensions: L83 x W52 x D17 mm
To install:
Synchronize the micro switches on the inside (DIP-10) with an already functioning remote control. No working remote control? Then synchronize them with the micro switches on the receiver/drive.
Learning fixed code on a receiver:
Download the installation manual here (NL)
| Number of pushbuttons | 4 |
|---|---|
| Radio Frequency | 869MHz |
| Color of button | Black |
| Color of LED | Yellow or Amber |
| Radio code | Teleradio Cougar T60 |
| Number of channels | 4 |
| Rolling code? | No |
| Self learning? | No |
| Homelink compatibel? | No |
| Battery type | AAA / LR03 / mini penlite 1,5 Alkaline |
| Brand | Tele Radio |
