General
| Number of pushbuttons | 1 |
|---|---|
| Radio Frequency | 869MHz |
| Color of button | Black |
| Color of LED | Yellow or Amber |
| Radio code | Teleradio Cougar T60 |
| Number of channels | 1 |
| Rolling code? | No |
| Self learning? | No |
| Homelink compatibel? | No |
| Brand | Tele Radio |

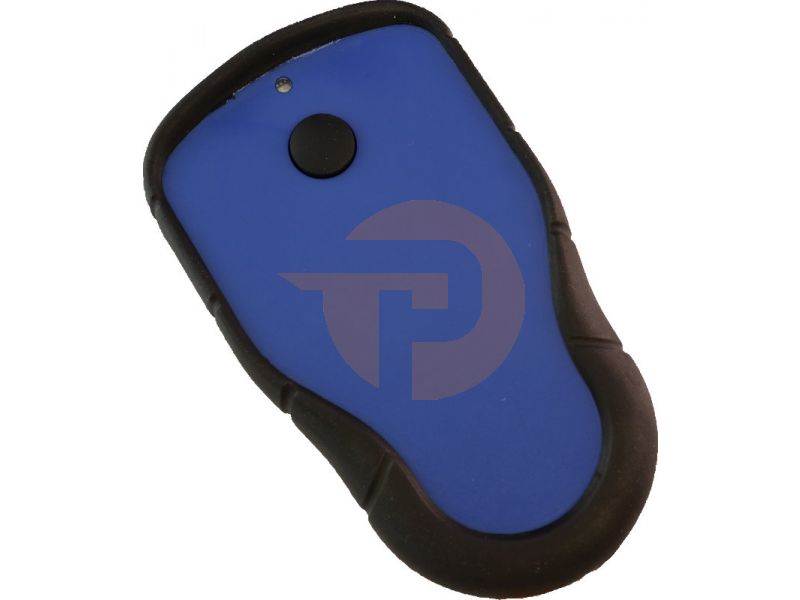

Remote control Tele Radio T60TX-01STM with 1 channel at 869MHz
1 channel remote control: T60TX-01STM
Self installable code (DIP-10).
Protection: IP65
Technical specifications:
1 push button
1 channel
Reach approx. 150 meters in open field
Frequency 869 MHz FM modulated
16 million possible codes
3x AAA (1,5V)
Dimensions: L83 x W52 x D17 mm
Installation:
Synchronize the micro switches on the inside (DIP-10) with an already functioning remote control. No working remote control? Then synchronize them with the micro switches on the receiver / drive.
Learn on a receiver:
