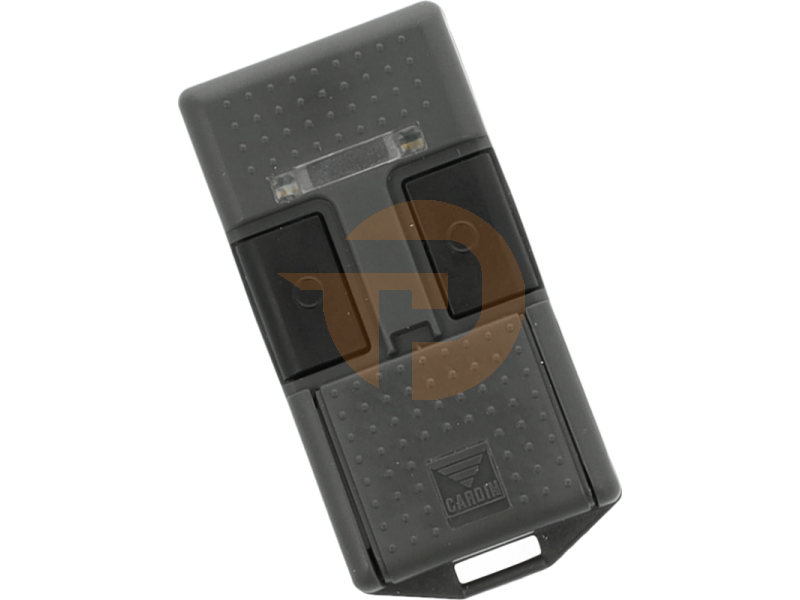

2 channel remote control:
19.683 possible codes configurable through 9-fold DIP-SWITCH setting
Installation:
Synchronize dip-switches in new remote to those in old remote.
No old remote control? Then sync DIP-switches to the settings of the receiver!
Technical specifications:
2 push buttons
2 channels
Rach approx. 150 meters in open field
Frequency 27,195 MHz AM (switchable to 27.660 MHz by use of jumper!)
19.683 possible codes possible through dip-switch settings
1x 23A batterij 12 V
Dimensions: L75 x W40 x D19 mm
| Number of pushbuttons | 2 |
|---|---|
| Radio Frequency | 27MHz |
| Color of button | Black |
| Color of LED | Red |
| Radio code | Cardin S46 (Dip9) |
| Number of channels | 2 |
| Rolling code? | No |
| Continuous mode (signal stays active) | No |
| Self learning? | No |
| Homelink compatibel? | No |
| Battery type | 23A / LR23 / MN21 12V Alkaline |
| Brand | Cardin |
