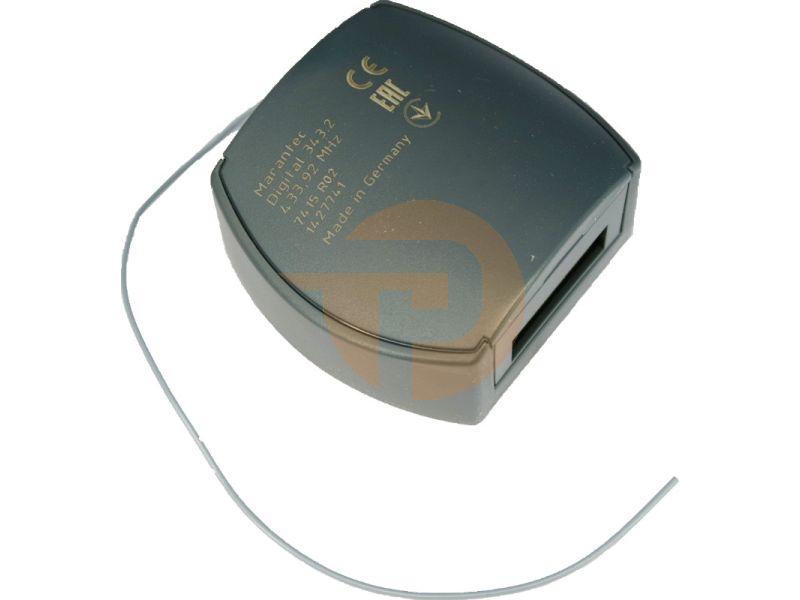

The Marantec Digital 343.2 is a 2-channel receiver that is available in 2 different frequencies.
The Digital 343.2 is suitable for controlling 2 different functions. These can be two different doors or gates, but it is also possible to activate different inputs on your gate control system. This allows you to, for example, open the gate completely but also set it to a pedestrian position.
Important to know:
Always choose the correct frequency (refer to your existing remote / receiver for this).
Although the MHz of products may be the same, all products with Multi-Bit are not compatible with products with Bi-Linked encoding.
| IP protection class | IP 20 |
|---|---|
| Radio code | Marantec Multi-Bit (40Bit), MFZ Multi-Bit (fixed code) |
| Memory for number of transmitters | Unlimited |
| Housing material | ABS (Plastic) |
| Number of channels | 2 |
| Operating voltage | 12/24 V ac/dc |
| Homelink compatibel? | No |
| Number of (relay/transistor) outputs | 2 |
