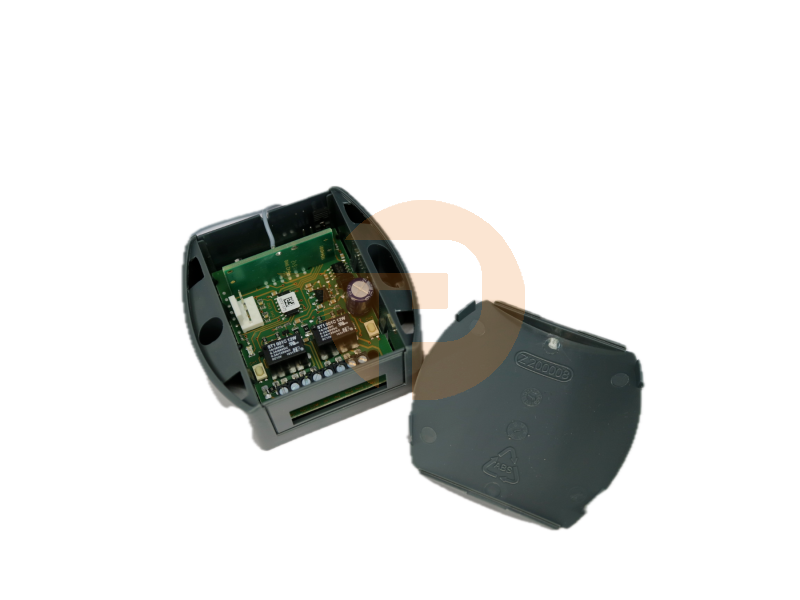

Receiver Marantec digital 343.3 433MHz

Name: Receiver Marantec digital 343.3 433MHz
SKU: Digital343.3-433
Price: 105.95 EUR

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Marantec Digital 343.3 Receiver with 2 channels on 433MHz

PLEASE NOTE: an 868MHz version also exists, but it is not compatible with this frequency!

Features:

The receiver is suitable for ALL Marantec MultiBit handheld transmitters on 433MHz.

Also known as:

343.3-433

Digital343.3-433

343.3-433 IP20

198476

Replacement for:

Digital 339.2 433MHz

Digital 343.2 433MHz

104958

104960

Multibit versus Bi-Linked

This is a Marantec product that works with MultiBit encoding. This is a fixed code where all transmitters must have the same code. There is also a Bi-Linked protocol at Marantec. That is a rolling code that also communicates bi-directionally between transmitter and receiver.

Although both systems are available on both 433MHz and 868MHz, the two encodings cannot communicate with each other!

Technical data:

Brand

Marantec

Type

Digital 343.3

Accepted Marantec encodings

MultiBit

Frequency

433 MHz

Number of memory locations

Unlimited

Number of relay outputs

Relay load

2x Potential-free changeover contact, NO-COM-NC

Maximum load

30V (1A) 30W DC / 24V (1A) 24VA AC

Supply voltage

12-24 Vac/dc

Consumption

Approx. 50 mA Max.

Relay functions

Pulse / Bi-stable (ON/OFF) / Dead man's control (as long as transmitter is active)

Dimensions

63 x 35 x 70 mm

Operating temperature

-20º / +60ºC

Technical specifications

Radio Frequency	433MHz
IP protection class	IP 20
Radio code	Marantec Multi-Bit (40Bit), MFZ Multi-Bit (fixed code)
Continuous mode (signal stays active)	Yes
Memory for number of transmitters	Unlimited
Housing material	ABS (Plastic)
Number of channels	2
Operating voltage	12/24 V ac/dc
External Antenna connection	Screw Terminal
Homelink compatibel?	No
Number of (relay/transistor) outputs	2
Function of the output	Momentary (puls), Latching (toggle)
Brand	Marantec
