General
| Radio Frequency | 868MHz |
|---|---|
| Radio code | Marantec Multi-Bit (40Bit) |
| Housing material | ABS (Plastic) |
| Number of channels | 1 |
| Operating voltage | 12/24 V ac/dc |
| Homelink compatibel? | No |
| Number of (relay/transistor) outputs | 1 |
| Brand | Marantec |

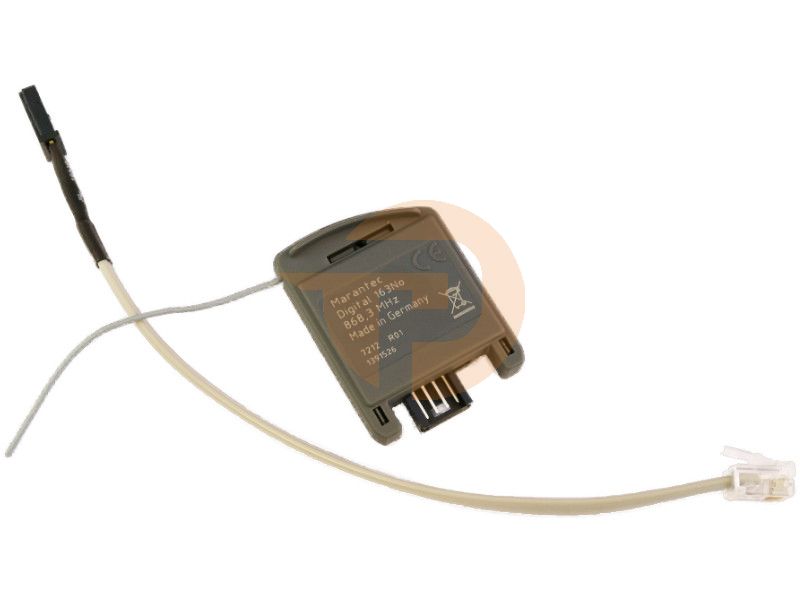

Receiver Marantec Digital 163 868MHz
Standard delivery:
Modular receiver Digital 163
Cable for connecting to system bus
Suitable for the drives:
Comfort 220 (produced between 05/2003 and 05/2008)
Comfort 250 (produced between 05/2003 and 05/2008)
Comfort 252 (produced between 05/2003 and 05/2008)
Suitable for the remote controls:
Digital 302
868 Mhz
Digital 304
868 Mhz
Digital 306
868 Mhz
Digital 313
868 Mhz
Digital 321
868 Mhz
Digital 323
868 Mhz
Digital 382
868 Mhz
Digital 384
868 Mhz
Technical specifications:
Product nr.:
65706
Brand:
Marantec
Type:
Digital 163
Frequency:
868MHz
Channels:
1
Code:
Marantec fixed code (Multi-Bit)
Max number remotes:
Unlimited
Supply:
12 - 24 V ac/dc
Dimensions:
37 x 53 x 13 mm
Temperature:
-20°C to +60°C
IP security level:
IP00
Relais exit:
None
Program remote controls:
1st remote control directly to receiver (check the manual of your drive).
Next remote controls are self learning (from remote to remote)
Compatible with
- Command222-868 - Codetableau Marantec Command 222 868MHz
- Command231-868 - Codetableau Marantec Command 231 868mhz
- Comfort51set - Electric garage door opener Marantec Comfort 51 SET (with rails + 2 hand transmitters)
- 82499 - Handzender Marantec digital 306 868mhz
- Digital313-868 - Handzender Marantec digital 313 868mhz
- 76852 - Handzender Marantec digital 321 868mhz
- Digital323-868 - Handzender Marantec digital 323 868mhz
- Digital382-868 - Handzender Marantec digital 382 868mhz
- Digital384-868 - Handzender Marantec digital 384 868Mhz
- Digital392-868 - Handzender Marantec digital 392 868mhz..
- Digital371-868 - Marantec Digital 371 conversion kit incl. 1 remote
- 101966-MAR - Modula antenna Marantec Digital 168 868Mhz MultiBit
- Digital340-868 - Ontvanger Marantec Digital 340.2 868MHz
- Digital339.2-104962-ROO - Ontvanger Marantec digital 339.2 868.3MHz
- Digital343.2-868MHz - Ontvanger Marantec digital 343.2 868MHz
- Printzender Marantec Command 132 - Print transmitter Marantec Command 132
- 70028-MAR - Print transmitter Marantec Command 132 4chan 868 Multi-Bit
- DigitalCS - Receiver Marantec CS 868MHz (multibit)
- Digital344.2-868 - Receiver Marantec Digital 344.2 868Mhz with 2 channels
- 103646-MAR - Receiver Marantec digital 164 868Mhz
- 88990-MAR - Remote Marantec digital 317 868mhz
- Command133 - Wall transmitter Marantec Command133
- 64812R-- - Wandzender Marantec Command 131 868MHz
