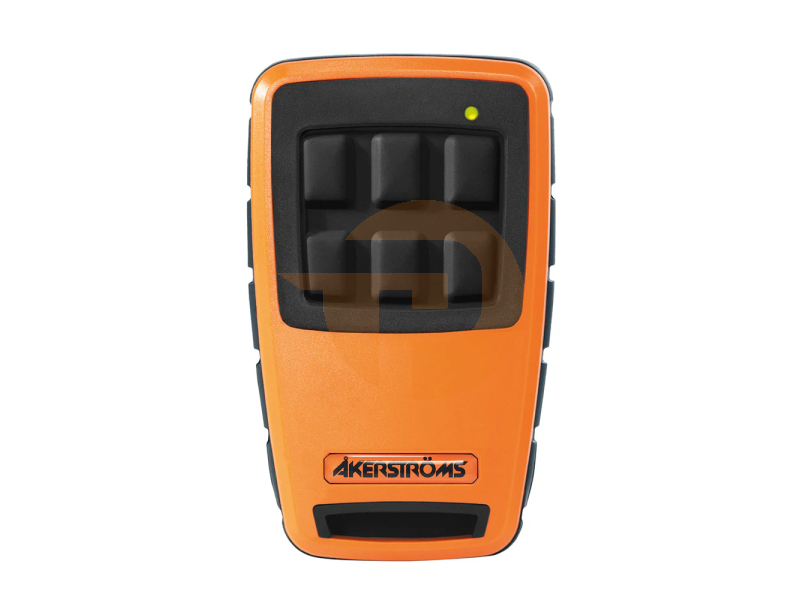

Hand transmitter Akerstroms Sesam 800 Configurable S6 (no label)

189,98
Add to Compare
Availability
On order / contact us!
  • 6 Channels

  • 6 Push buttons

  • Sesame 800 CONFIG - series
  • Contact us for large amounts (100+)

  • Unlimited online support

Akerstroms Sesam 800 S6 CONFIGURABLE 'no label' Remote Control

Industrial remote control from Akerstroms, medium version, with status LED and 6 push buttons, operating on 869.8 MHz.

NOTE: SESAM 800 has 3 versions



- SESAM 800: This is the standard version.

- SESAM 800 MOBILE: This is the version specifically for mobile applications (vehicles).

- SESAM 800 CONFIG: This is the version where the relay functions can be configured manually. become.

The different series are NOT interchangeable!

This remote control is suitable for the following applications, among others:

  • Cranes
  • Positioning systems
  • X-axis & Y-axis controls

Only suitable for the receivers:

Sesame 800 Configurable
947051-000
Sesame 800 Configurable external antenna
949278-000

Programming handheld transmitters

Can be programmed directly on the receiver. For this, please refer to the manual for your control/drive/receiver.

Replacement for

947040-001 Akerstroms Sesam 800 Configurable S6 Remote Control (standard label layout)
Standard Label can be found here: Standard layout label.

Technical data:

Item number
947040-000
Nutrition
3V (2x AA)
Temperature range
-25ºC < +70ºC
Power
Max 5 mW
Consumption
15 mA during transmission
Size
100 x 60 x 25 mm
Weight
130g (incl. batteries)

General

Number of pushbuttons 6
Radio Frequency 869MHz
Color of button Black
Color of LED Green, Red, Multi-color
Radio code Åkerströms Sesam 800 CONFIG
Number of channels 6
Rolling code? Yes
Continuous mode (signal stays active) Yes
IP protection class IP 67
Self learning? No
Homelink compatibel? No
Battery type AA / LR6 / MN1500 penlite 1,5V
Brand Åkerströms

Compatible with
