General
| Type photocell | Zend-ontvanger 4-draads |
|---|---|
| Fotocell Afmetingen | 30 x 90 x 28 mm (BxHxD) |
| Fotocel aligneble? | No |
| Fotocell Indicatie LED | No |
| Distance | 25 m |
| Operating voltage | 12/24 V ac/dc |
| IP protection class | IP-54 Splashing of water |
| Brand | Marantec |

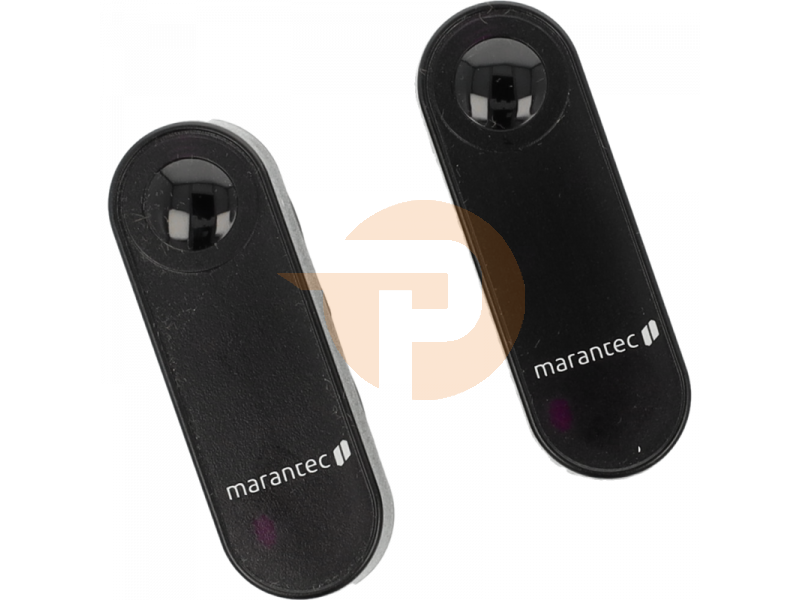

Photocell Marantec LS22 24Vdc 4-wire (SET)
Marantec LS22 photocell (set) transmitter-receiver
Waterproof photocell for all power supplies from 10-30 Vac or 10-40 Vdc.
Universally applicable where a separate transmitter (2-wire) and a receiver with relay (4-wire) are used
Technical specifications:
- Range up to 25 meters
- IP54
- Operating temperature -20ºC - 55ºC
- Transmitter
- 2-wire connection (power supply)
- Supply voltage 10-30Vac or 10-40 Vdc Vac
- Consumption 10 mA
- Receiver
- 4-wire connection (power supply / COM + NO)
- Supply voltage 10-30Vac or 10-40 Vdc Vac
- Receiver consumption 27 mA
- Output 1 relay potential free contact (NO)
- Switching capacity (Relay) 24Vdc / 1A
Extremely suitable for:
- Securing sliding gates and garage doors
- Access control of store entrances
- Burglary protection
- Fits in CH-51N & CH-101N housing
