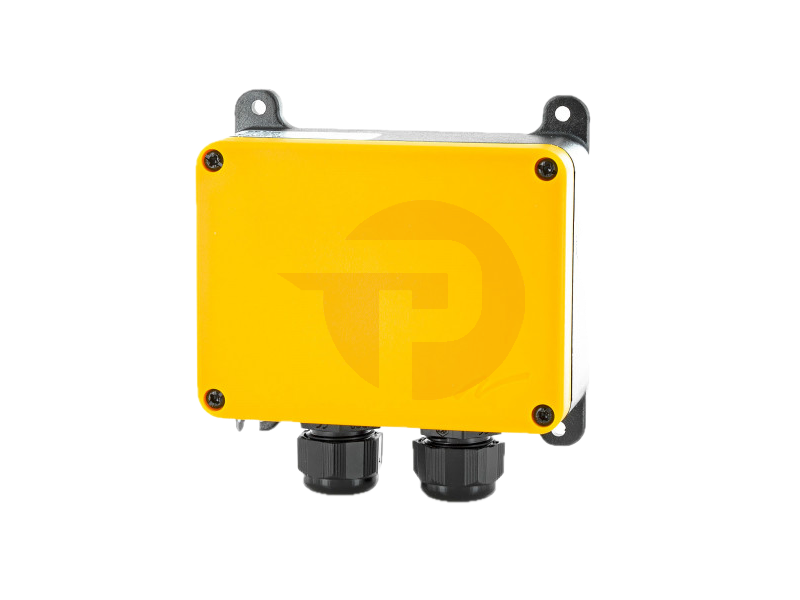

Tele Radio PN-R8-1 12-24V Receiver

349,99
Add to Compare
Availability
Out of stock Mail us for delivery times
  • Tele Radio

  • Panther series receiver

  • 5 relay outputs

  • internal antenna
  • Contact us for large amounts (100+)

  • Unlimited online support

Product features

The PN-R8-1 receiver is part of the Panther system from Tele Radio. The product is intended for use in automation systems for gates, winches, tow trucks, rescue vehicles, vacuum trucks, transport trailers, and electrical circuits in general.
Equipped with 5 changeover relay outputs, suitable for use on electrical power circuits.
Can be provided with customer-specific software for advanced circuits.
Equipped with memory with a storage capacity of 8 transmitters.

Standard included

Receiver in plastic housing (IP66)
Manual in English

Technical data

Art.No.
PN-R8-1
Brand
Tele Radio
Type
PN-R8-1
Frequency
2.4 GHz
Radio channels
16
Code
Tele Radio Panther 2.4 GHz
Max number of handheld transmitters
8
Nutrition
12-24Vdc
Size
120 x 117 x 51 mm
Ambient temperature
-20 ... +55 °C
IP
66
Relay outputs
5x potential-free changeover relay, 10A 250V AC
Antenna connection
internal

Programming handheld transmitters

Can be programmed directly on the receiver. See your receiver's manual for this.
First press 'Function' on the receiver and then 'Select' to then operate buttons 1 & 2 simultaneously on the transmitter.

General

Radio Frequency 2,4GHz
IP protection class IP 66
Radio code Teleradio Panther 2,4GHz
Continuous mode (signal stays active) Yes
Memory for number of transmitters 8
Housing material ABS (Plastic)
Number of channels 5
Operating voltage 12..24 Vdc
Homelink compatibel? No
Number of (relay/transistor) outputs 5
Function of the output Momentary (puls), Latching (toggle), Timed
Brand Tele Radio

Compatible with

How to program a Tele Radio PN-T(x) (Panther) transmitter in a PN-R8-(x) receiver
