Receiver RDA PIKO868-UBS 1K 868MHz

109,95
Add to Compare
Availability
In stock
  • RDA

  • PIKO868

  • RDA-coding

  • 868MHz
  • Contact us for large amounts (100+)

  • Unlimited online support

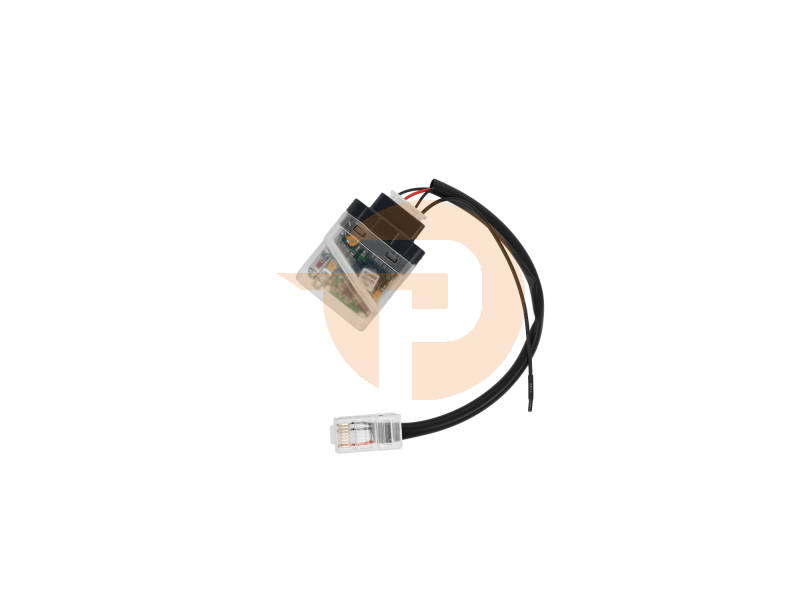

Receiver RDA PIKO868-UBS with 1 channel with the frequency 868MHz

RDA 1-channel wired receiver with antenna.

The PIKO868-UBS has memory capacity for 200 remotes, an antenna, and can be installed practically anywhere because of its small size. This is a wired receiver compatible with the GFA operating system.

Product details

This receiver is intended for use in installations, buildings, and other automatic systems.
Standard delivery with 3 wires (2x 12…24Vac/dc and 1x relay exits, N.O). in a UBS-connector
Equipped with memory capacity for 200 remote controls.
The receiver comes pre-installed with an antenna.
Wired receiver with UBS-connector, compatible with the GFA Controller.

This package includes

Receiver
Pre-installed antenna
Compatible with the GFA controllers
Manual (Dutch)

Technical specs

Art.Nr.
521645.000227
Brand
RDA
Type
PIKO868-UBS
Frequency
868MHz
Channels
1
Code
RDA-coding
Installation-code/PIN-function
No
Max amount remotes
200
Power supply
24Vac
Dimensions
41 x 30 x 19 mm
Environmental temperature
-20 ... +55 °C
IP
20
Relays
1x relay output, N.O. (12/24V ac/dc 1A)

Programming your remote

Program directly to the receiver. Consult the manual of your operation system/garage door opener/receiver.

General

Radio Frequency 868MHz
IP protection class IP 20
Radio code RDA KeeLoq
Memory for number of transmitters 200
Materiaal behuizing ABS (Kunststof)
Number of channels 1
Operating voltage 12/24 V ac/dc
Homelink compatibel? No
Number of (relay/transistor) outputs 1
Brand RDA
