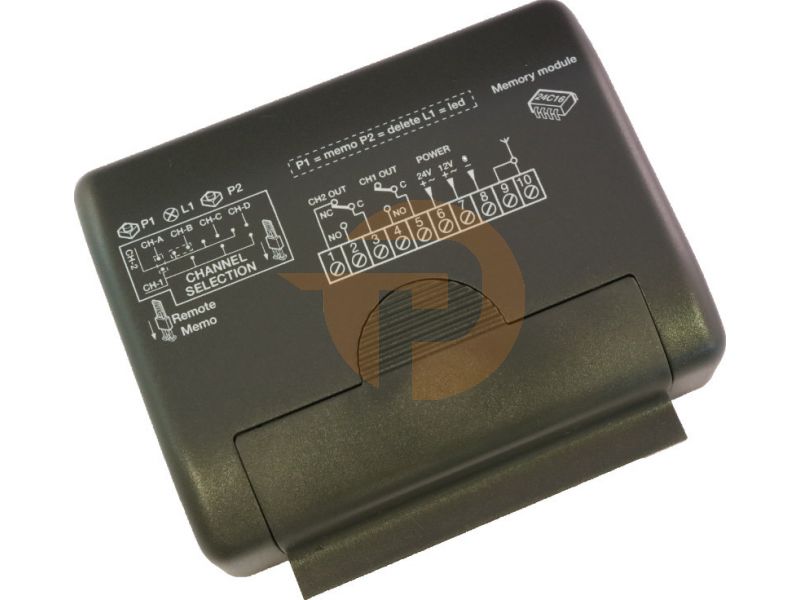

Receiver Cardin RQM449200 mini 2 channels 433 MHz

89,25
Add to Compare
Availability
In stock
  • Contact us for large amounts (100+)

  • Unlimited online support

Technical specifications:
Product. Nr.: S449 RXM 2CH
Brand: Cardin
Type: RQM449200
Frequency: 443.92MHz
Channels: 2
Code: Rolling code
Max number remote controls: 300
Supply: 12/24 Vac-dc (Set Jumper)
Dimensions: 95 x 75 x 25 mm
IP: 20

Relais:
CH1 = NO CH2= NO/NC.

Compatible with the following remote controls:
CARDIN S449 TXQ449100
CARDIN S449 TXQ449200
CARDIN S449 TXQ449300
CARDIN S449 TXQ449400
CARDIN S449 TXQ44940M
CARDIN S449 TXQPRO449-4
CARDIN S449 TXQPRO449-4A

Installing remote controls:
- Self learning (from remote to remote) whether or not being near to the receiver.
- Can be programmed directly to receiver. To do this, take a look at the manual of your control/drive/receiver.

 Download the information leaflet here. (EN-DU-FR-ES)

General

Radio Frequency 433MHz
IP protection class IP 20
Radio code Cardin S449 64Bit
Memory for number of transmitters 300
Materiaal behuizing ABS (Kunststof)
Number of channels 2
Operating voltage 12/24 V ac/dc
Homelink compatibel? No
Number of (relay/transistor) outputs 2
Brand Cardin
