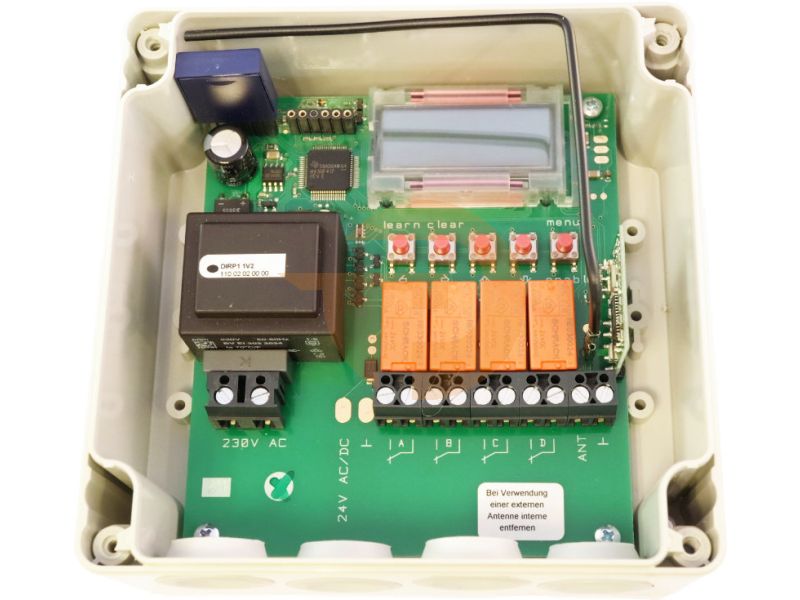

Receiver Tedsen Teletaster EKR4DIRP
Receiver Tedsen Teletaster EKR4DIRP
Properties
IRP® receiver with 2 memory module connectors and up to 2,000 memory locations.
With an LCD display and programming button, changes can also be made directly on site to receivers.
Interchangeable with:
All Tedsen Teletaster IRP Transmitters
Control technical data
Outputs
4 Potential Free Relapse Contracts
Relay Operating Modules
Adjustable per relay (impulse, on/off, switch, timer)
Virtual Numbers
Yes (on memory module ZM256)
Encoding
KeeLoq® Hopping code method
Dimensions
121 x 120 x 57mm
Installation
Enclosure terminals
Radio Frequency
433MHz
IP protection class
IP-54 Splashing of water
Radio code
Tedsen Teletaster SKR IRP (433 KeeLoq)
Continuous mode (signal stays active)
Max 3 min
Memory for number of transmitters
2000
Housing material
ABS (Plastic)
Number of channels
4
Operating voltage
230 Vac + N + PE ( 1 phase)
External Antenna connection
Screw Terminal
Homelink compatibel?
No
Number of (relay/transistor) outputs
4
Function of the output
Momentary (puls), Latching (toggle), Timed
Brand
Tedsen Teletaster
