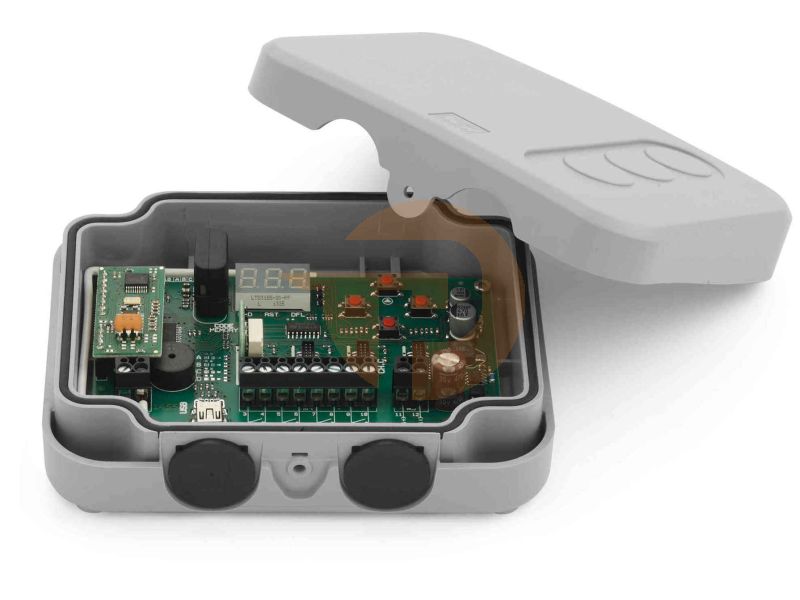

1-channel receiver with 3 additional relay ports, allowing you to expand the number of channels to 4.
This receiver is suitable for controlling 4 different functions after expanding the number of relays. These can be four different doors or gates, or you can activate different inputs on your gate control. This allows you to, for example, fully open the gate or set it to a walking position.
Because the relays can be configured as ON/OFF or TIMER in addition to a PULSE function, they can also be reused, for example, to set a gate to a continuous open position (ON/OFF) or to control garage lighting (TIMER).
The receiver's display makes it easy to add and remove additional transmitters individually. You can also see how many transmitters are already paired with the receiver on the display.
| Radio Frequency | 433MHz |
|---|---|
| IP protection class | IP 55 |
| Radio code | Cardin S504 128Bit |
| Memory for number of transmitters | 1000 |
| Housing material | ABS (Plastic) |
| Number of channels | 1 |
| Operating voltage | 12/24 V ac/dc |
| External Antenna connection | Screw Terminal |
| Homelink compatibel? | No |
| Number of (relay/transistor) outputs | 1 |
| Function of the output | Momentary (puls), Latching (toggle), Timed |
| Brand | Cardin |
